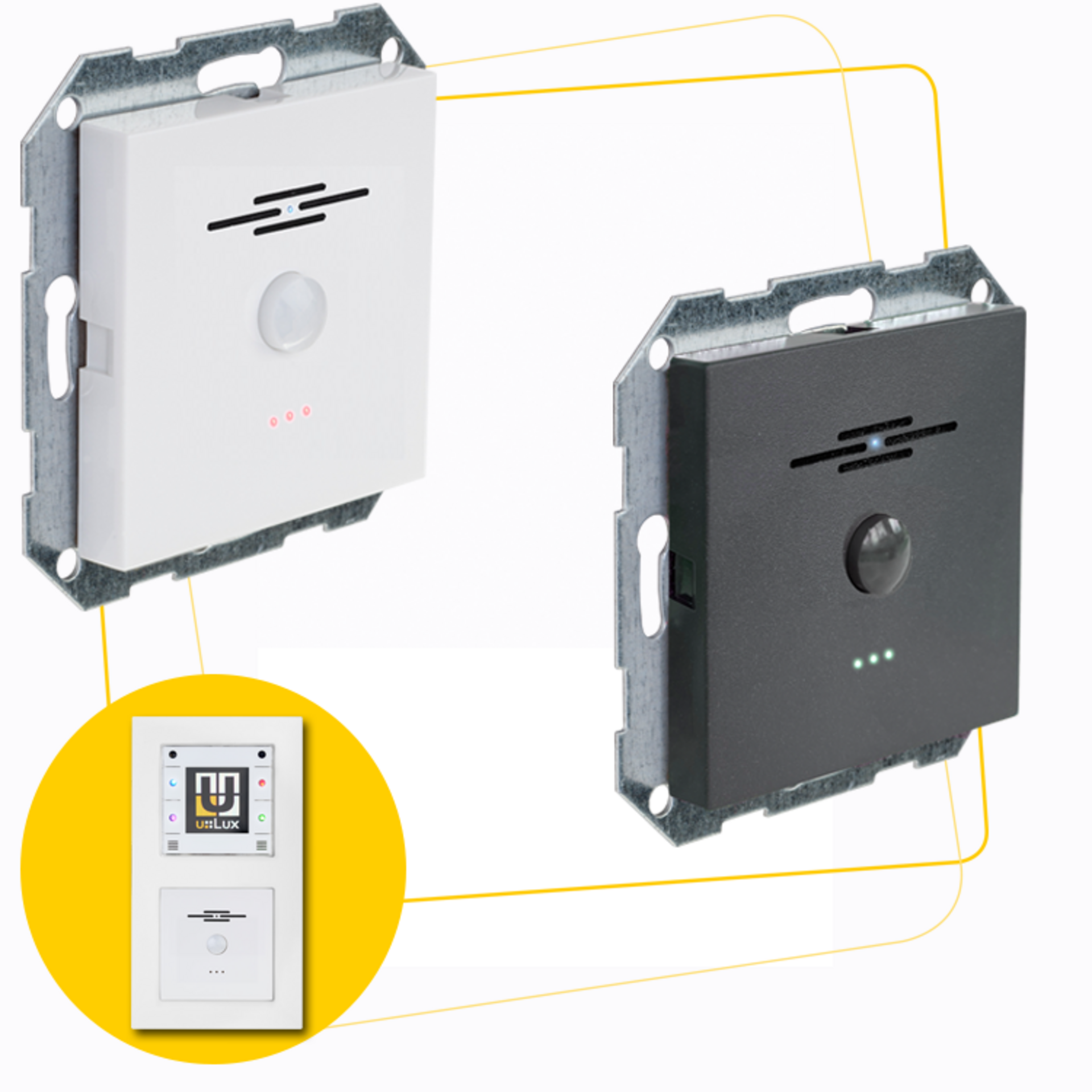

AddOn Multisensor

Measurement of temperature, air humidity, CO2 & motion detector
  • The u::Lux AddOn Multisensor is a motion detector with integrated temperature, air humidity and CO2 measuring module incl. front plate and mounting material.
  • Extends the capabilities of the u::Lux Switch by a motion detector and measures furthermore the relative air humidity, temperature and CO2 content.
  • The sensor data is sent to the control directly through the network. Additional sensor inputs at the control are therefore not required.
  • This AddOn is connected through a 25cm long 4-pole cable (included in the scope of delivery) to the u::Lux Switch.
  • installation dimensions: 55mm x 55mm x 20mm
  • motion detector (range approx. 5m.)
  • temperature measurement (-55°C - +125°C)
  • air humidity measurement (0% until 100% - non-condensing)
  • CO2 measurement (400ppm until 2000ppm - 0,040 Vol.% until 0,2 Vol.%)
  • configurable RGB-LEDs for displaying the status of motion and CO2

Appropriate u::Lux Switch:
u::Lux Switch RJ45
u::Lux Switch LSA/IDC

Further information:
u::Lux AddOns Manual


The assembly of the u::Lux AddOns is always done near a u::Lux Switch. The best results have been achieved with the use of two single-flushmountings assembled below each other or one double-flush-mounting in which the
u::Lux Switch with the u::Lux AddOn is mounted and a double frame is attached. The u::Lux AddOn is connected to the u::Lux NetLink with the supplied cable (approx. 25cm).
