u::Lux extension modules
If necessary, the room control unit u::Lux Switch can be combined with extension modules for measuring temperature (TEMP), humidity (RH) and CO2 as well as a motion detector (MD). In addition, the u::Lux Switch or each of these "AddOns" can be expanded to include ONE AddOn-IN2 (digital input module) (e.g.: for an additional 1-fold or 2-fold button).
Mounting

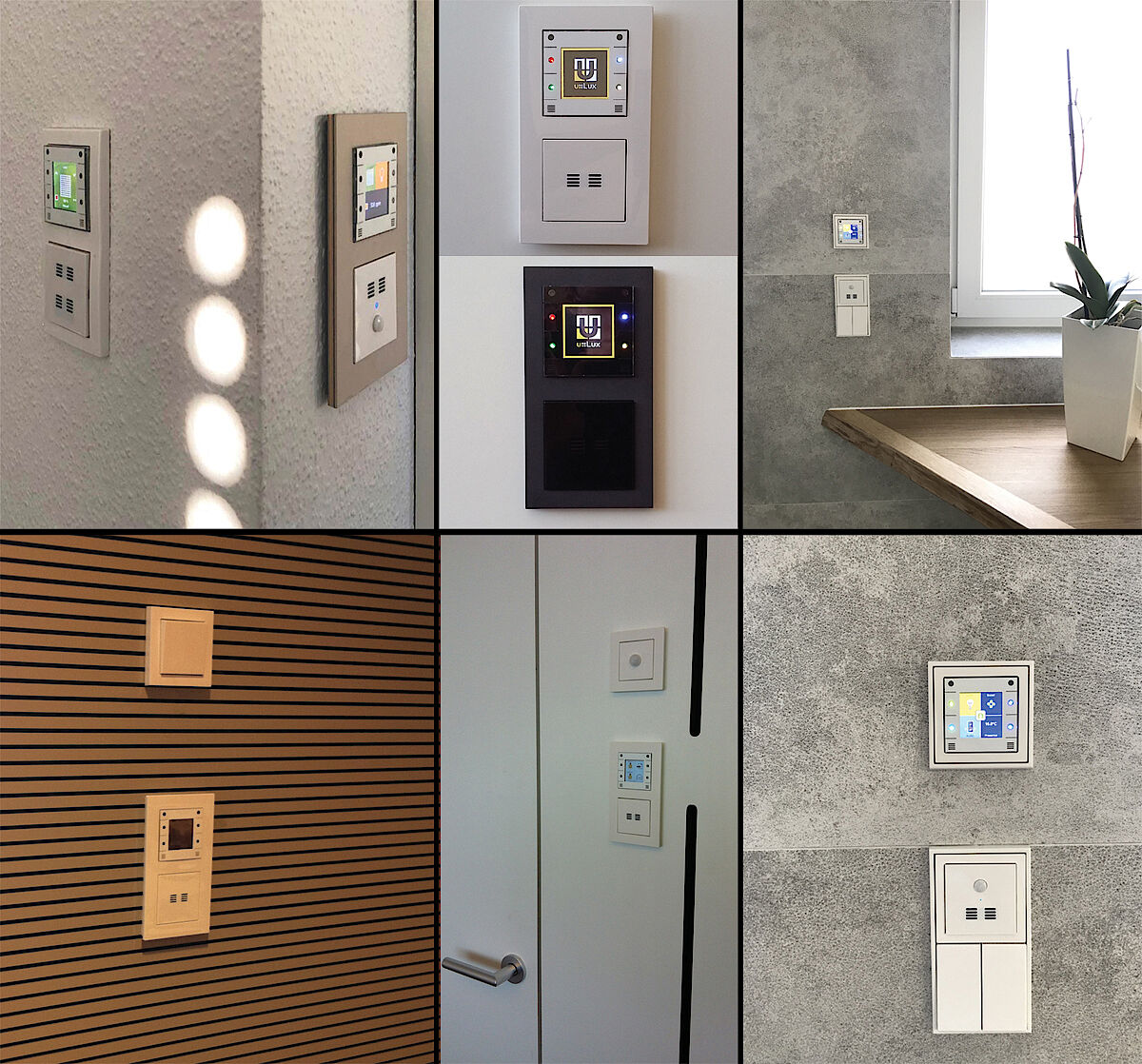

The assembly of the u::Lux AddOns is always done near a u::Lux Switch. The best results have been achieved with the use of two single-flushmountings assembled below each other or one double-flush-mounting in which the
u::Lux Switch with the u::Lux AddOn is mounted and a double frame is attached. The u::Lux AddOn is connected to the u::Lux NetLink (lower part of the u::Lux Switch) with the supplied cable (approx. 25cm). Assembly instruction
Cover frames are not included in the scope of delivery (overview cover frames)
AddOn RH+TEMP
Temperature & air humidity measurement
- installation dimensions: 55mm x 55mm x 20mm
- temperature measurement (measurement range: -55°C - +125°C)
- air humidity measurement (0% until 100% - non-condensing)
AddOn MD+RH+TEMP
Temperature & air humidity measurement & motion detector
- installation dimensions: 55mm x 55mm x 20mm
- temperature measurement (-55°C - +125°C)
- air humidity measurement (0% until 100% - non-condensing)
- motion detector (range approx. 5m.)
- configurable RGB-LED for displaying the control status (active/inactive)
AddOn CO2+RH+TEMP
CO2 & air humidity & temperature measurement
- installation measurements: 55mm x 55mm x 20mm
- CO2 measurement (360ppm until 5000ppm - 0,036 Vol.% until 0,5 Vol.%)
- temperature measurement (-55°C - +125°C)
- air humidity measurement (0% until 100% - non-condensing)
AddOn Multisensor
Temperature & air humidity & CO2 measurement & motion detector
- installation measurements: 55mm x 55mm x 20mm
- CO2 measurement (400ppm until 2000ppm - 0,040 Vol.% until 0,2 Vol.%)
- temperature measurement (-55°C - +125°C)
- air humidity measurement (0% until 100% - non-condensing)
- motion detector (range approx. 5m.)
- configurable RGB-LEDs for displaying the status of motion and CO2
AddOn IN2
